Sentinel Tower

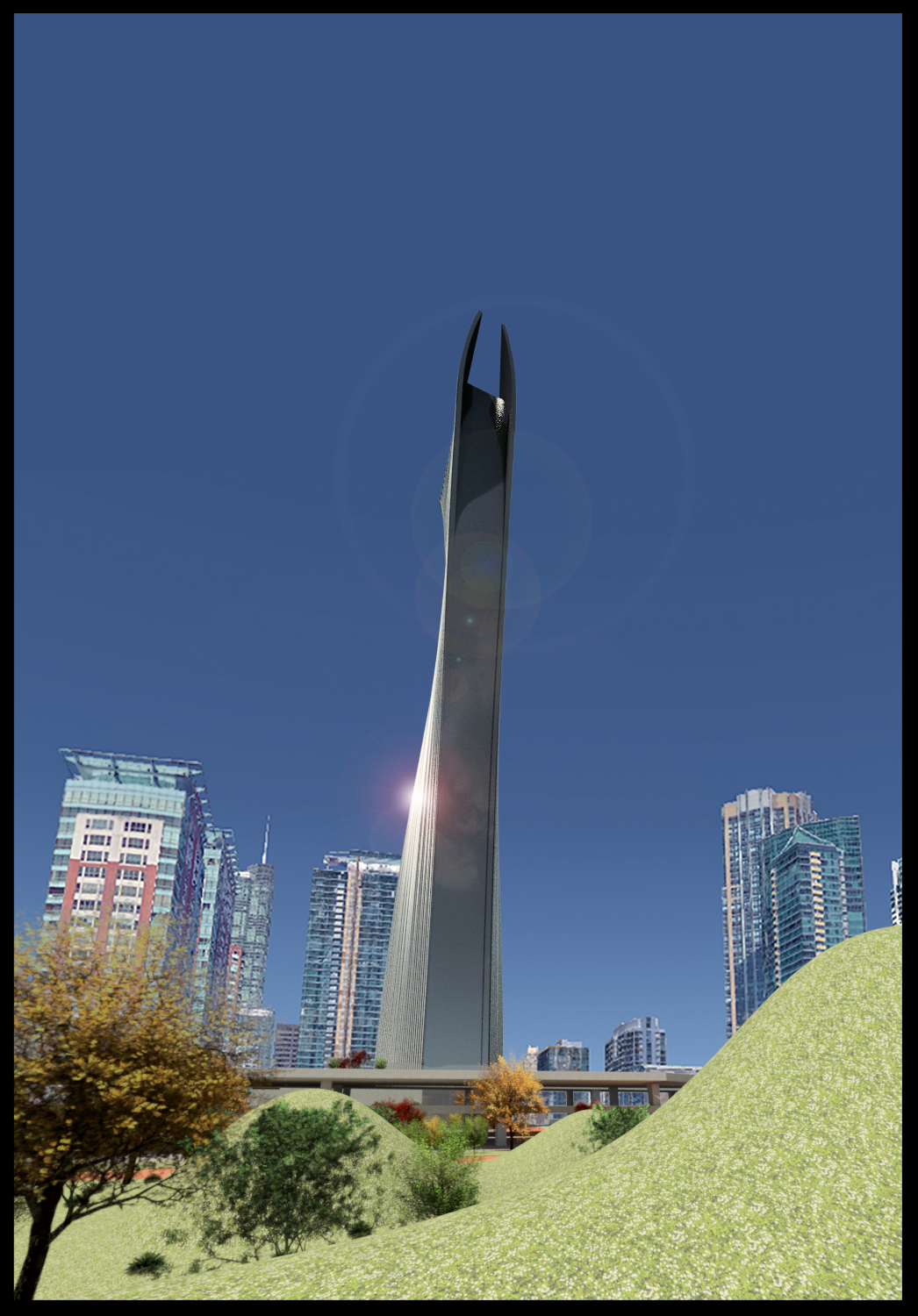

DuSable Park
Riverwalk and Plaza
Lobby
Sentinel Tower - Site Plan.png
Sentinel Tower - Elevations.png
The 112-floor program includes 12 floors of parking and commercial space, 99 floors of residential space, and a restaurant on the top floor.
Building is serviced by 12 elevators and 2 staircases. Some elevators service fewer floors than others, balancing demand and efficiency.
Building is supported via core and outrigger system. Columns curve, merge, and drop out as necessary to adequately support the building, follow the exterior form, and maximize floor space.
Access to parking garage in podium is restricted to Lower Lakeshore Drive to minimize traffic impact. A low-volume drop-off and pick-up zone is located in the rear of the building, as well.
